For engineers developing tubular components and assemblies, involving a manufacturing partner early in the design process can help identify opportunities to simplify production before tooling is built or a design is finalized.
At Morton Industries, tube fabrication has been a core manufacturing capability for decades. That experience has reinforced an important lesson: some of the biggest opportunities to improve a manufactured part happen before production ever begins.
Understanding a few key tube bending design considerations can help engineers develop components that are easier to manufacture, more repeatable at production volumes and better positioned to meet cost and performance requirements.
Why Design for Manufacturability Matters in Tube Bending
Design for manufacturability, commonly called DFM, considers how a component will actually be produced while it is still being designed.
For tube bending, seemingly small design decisions can affect the complexity of the manufacturing process.
A tight bend radius, thin tube wall, difficult tolerance or limited straight section between bends may be necessary for the final application. But each can also influence tooling, equipment selection, cycle time and the ability to consistently reproduce the part.
Considering manufacturability early allows engineers and fabricators to evaluate those tradeoffs together.
The goal is not simply to make a design easier to manufacture. It is to find the most efficient way to produce a component while maintaining the performance the application requires.
Bend Radius Is One of the Most Important Design Decisions
The centerline radius (CLR) describes the radius measured from the center of the bend to the centerline of the tube.
It is one of the most important specifications when designing a bent tubular component.
As bend radius becomes tighter relative to the tube’s outside diameter, forming generally becomes more challenging. During bending, material on the outside of the bend stretches while material on the inside compresses.
Depending on the combination of geometry, material and process, excessively tight bends can contribute to:
- Wall thinning
- Wrinkling
- Tube flattening or ovality
- Increased tooling requirements
- Greater process complexity
- Difficulty maintaining repeatable dimensions
There is no single minimum bend radius that applies to every tube.
The achievable radius depends on several variables, including outside diameter, wall thickness, material properties, bend angle, tooling and the bending process being used.
For this reason, engineers designing tight-radius components can benefit from discussing the application with their tube fabrication partner before finalizing the design.
Consider Tube Diameter and Wall Thickness Together
Outside diameter and wall thickness should not be evaluated independently when designing a bent tube.
A relatively thin wall provides less support as the tube is formed. As bend severity increases, maintaining the desired cross-sectional shape can become more difficult.
The material itself also matters.
Carbon steel, stainless steel, aluminum and other alloys behave differently during forming because their mechanical properties vary. A geometry that works well with one material may require different tooling or design considerations when produced from another.
When wall thickness, material or tube diameter is flexible within the application, discussing those options with the manufacturer can uncover opportunities to improve manufacturability without sacrificing performance.
Understand When Mandrel Bending May Be Required
Some tube geometries require additional internal support during bending.
In mandrel bending, tooling is positioned inside the tube to help support its shape as the material forms around the bend die.
Mandrel bending can be particularly useful for applications involving:
- Thin-wall tubing
- Tight bend radii
- Applications with strict ovality requirements
- Components where maintaining the internal tube profile is important
- Complex or high-precision tubular assemblies
The need for mandrel support depends on the complete combination of tube geometry, material and finished-part requirements.
Determining this early can help engineers better understand the manufacturing process and tooling requirements associated with the design.
Leave Enough Space Between Bends and Features
One design consideration that can be easy to overlook is what happens between bends.
Tube bending equipment must be able to grip, position and manipulate the material throughout the forming process. Extremely short straight sections between bends can make that process more difficult and may require specialized tooling or additional operations.
The same consideration applies to features such as:
- Holes
- Slots
- Brackets
- Fittings
- Welded components
- End forms
The location of these features can affect the order in which a component is bent, cut, welded or assembled.
Looking at the entire manufacturing sequence instead of each feature individually can reveal opportunities to simplify production.
Avoid Unnecessarily Tight Tolerances
Every manufactured component requires tolerances, but tighter is not automatically better.
Unnecessarily restrictive tolerances can increase inspection requirements, process complexity and manufacturing cost without improving the performance of the finished product.
Instead, tolerances should reflect what the application actually requires.
For complex tubular components, it can be helpful to identify which dimensions and features are truly critical to function and where additional manufacturing flexibility is acceptable.
This allows the manufacturing process to focus precision where it matters most.
Account for Springback During Tube Bending
Metal does not always remain exactly where it is formed.
After bending force is removed, the material can recover slightly toward its original shape. This behavior is known as springback.
The amount of springback varies based on factors including material properties, wall thickness, bend radius and geometry.
Experienced tube fabricators account for springback through tooling, equipment programming and process development so the finished component meets the required dimensions.
For engineers, the important consideration is less about calculating springback independently and more about recognizing that material behavior is part of developing a repeatable bending process.
Standardization Can Reduce Manufacturing Complexity
Complexity sometimes enters a design without adding meaningful value to the finished product.
For example, a component containing several different bend radii may require additional tooling compared with a design that can use a consistent radius.
Likewise, using common tube sizes, materials and features across multiple components may create opportunities to simplify sourcing, tooling and production.
That does not mean every bend should be identical.
Instead, engineers should consider whether design variation is functionally necessary.
When it isn’t, standardization may help reduce manufacturing complexity and cost.
Think Beyond the Bend
A bent tube is often only one part of a larger manufacturing process.
Many tubular components require additional operations such as:
- Laser cutting
- Welding
- Brazing
- Machining
- End forming
- Assembly
- Finishing
- Inspection
Design decisions made for the tube can affect each downstream operation.
For example, changing the location of a bend could improve access for welding. Adjusting a feature may simplify fixturing. Modifying an assembly could reduce the number of individual components or manufacturing steps required.
Evaluating the complete part and manufacturing process can reveal opportunities that would not be apparent by evaluating the bending operation alone.
Involve Your Tube Fabrication Partner Early
One of the most effective ways to improve manufacturability is also one of the simplest: bring manufacturing expertise into the conversation early.
A tube fabricator can help evaluate:
- Bend feasibility
- Material selection
- Bend radii
- Wall thickness
- Tooling requirements
- Tolerances
- Production volumes
- Secondary operations
- Assembly considerations
- Potential cost-reduction opportunities
The earlier these conversations happen, the more flexibility engineering teams typically have to make meaningful improvements.
Once tooling has been purchased or a design has moved through validation, even a small change can become significantly more difficult.
Collaboration between design engineering and manufacturing can help identify those opportunities before they become expensive problems.

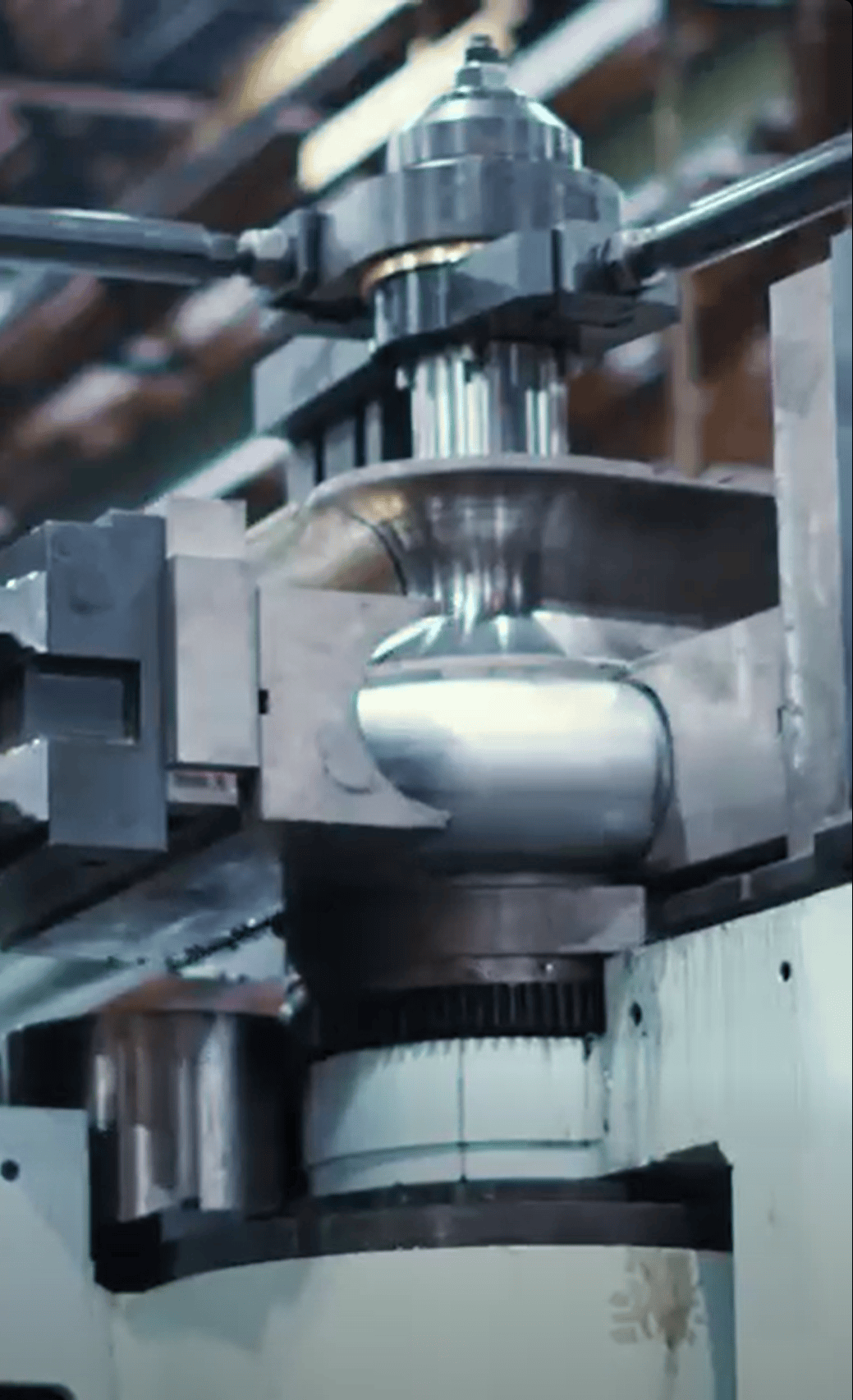

Tube Bending Capabilities at Morton Industries
Morton Industries provides advanced tube fabrication and manufacturing solutions for OEMs across a wide range of industries.
Our tube fabrication capabilities include bending tube from 1/8 inch to 12 inches in outside diameter, with capabilities for tight-radius applications and a wide range of materials and component geometries.
Beyond bending, Morton Industries provides integrated manufacturing capabilities including laser processing, welding, brazing, sheet metal fabrication, finishing, assembly and other value-added services.
Our engineering and manufacturing teams work with customers throughout the product lifecycle, from early design and prototyping through full-scale production.
By considering both product performance and manufacturability, we help customers develop manufacturing solutions designed not only to work—but to work efficiently at production scale.
